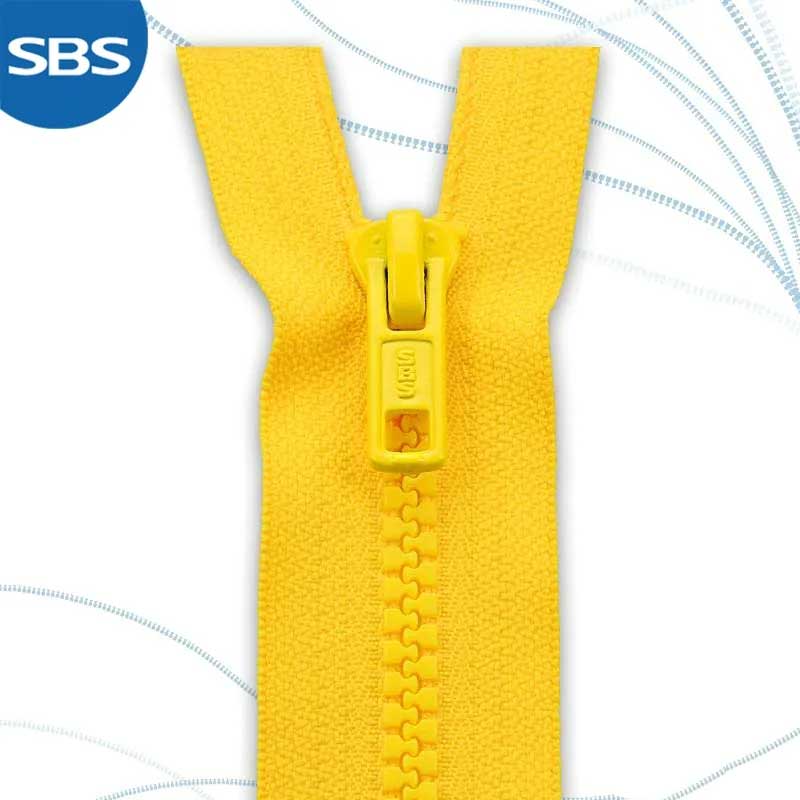

Standard Normal Plastic (Delrin ) Zipper

Standard Normal Plastic (Delrin ) Zipper

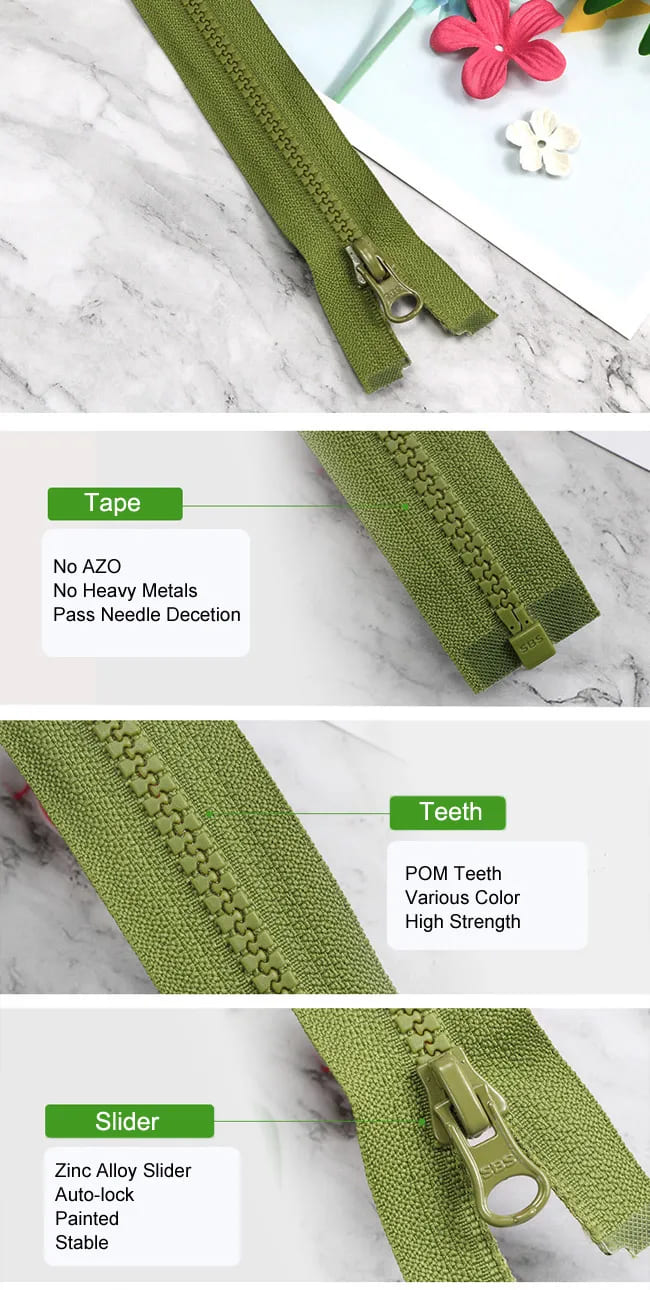

Characterized by corrosion resistance, toughness, handiness, environmental friendliness, and a lower shrinkage rate, the straight tape that is fadeless is the best choice for working clothes, down jackets, and armament bags.

Category:

Specification



Size/End-type
Model Classification
Close End Open End 2 Way Close End 2 Way Open End Chain
3P √ √ × √ √
4P √ √ × × √
5P √ √ √ √ √
8P √ √ √ √ √
10P √ √ √ √ √

Property Parameters



3P Stardard Normal Plastic Zipper QB/T2171-2014 Standard SBS Properties(Q/XXKG.002-2016) DIN3419 Standard
Chain Crosswise ≥250 ≥250 250
Tap Pull-Off Strength ≤4 ≤4 /
Holding Strength Of Top Stop ≥60 ≥60 60
Holding Strength Of Bottom Stop ≥40 ≥40 /
Bottom Stop Holding,Crosswise Test / 30 30
Open-End Fastener Single Stringer Slider Retention Test ≥50 ≥50 /
Holding Strength Of Separating Unit,Crosswise Test / Chain Crosswise Strength ≥70 ≥70 80
Holding Strength Of Fixed Retainer Pull-Off Test/ Box Slippage Strength ≥70 ≥70 60
Pin Slippate Strength ≥60 ≥60 /
Resistance To Pull-Off Slider Pull ≥150 ≥150 70
Resistance To Twist Of Puller And Slider ≥0.2 ≥0.2 /
Deflection Strength ≥50 ≥50 /
Slider Lock Holding, Stringer Separation ≥25 ≥25 /
Scoop Slippage, Lengthwise ≥30 ≥30 /
Individual Scoop Pull Off / ≥30 25
Reciprocation Test(Double) ≥600 ≥600 /
4P Stardard Normal Plastic Zipper QB/T2171-2014 Standard SBS Properties(Q/XXKG.002-2016) DIN3419 Standard
Chain Crosswise ≥300 ≥300 425
Tap Pull-Off Strength ≤5 ≤5 /
Holding Strength Of Top Stop ≥70 ≥70 60
Holding Strength Of Bottom Stop ≥60 ≥60 /
Bottom Stop Holding,Crosswise Test / ≥50 40
Open-End Fastener Single Stringer Slider Retention Test ≥60 ≥60 /
Holding Strength Of Separating Unit,Crosswise Test / Chain Crosswise Strength ≥90 ≥90 90
Holding Strength Of Fixed Retainer Pull-Off Test/ Box Slippage Strength ≥85 ≥85 60
Pin Slippate Strength ≥80 ≥80 /
Resistance To Pull-Off Slider Pull ≥200 ≥200 70
Resistance To Twist Of Puller And Slider ≥0.3 ≥0.3 /
Deflection Strength ≥58 ≥58 /
Slider Lock Holding, Stringer Separation ≥30 ≥30 /
Scoop Slippage, Lengthwise ≥45 ≥45 /
Individual Scoop Pull Off / ≥40 40
Reciprocation Test(Double) ≥600 ≥600 /
5P Stardard Normal Plastic Zipper QB/T2171-2014 Standard SBS Properties(Q/XXKG.002-2016) DIN3419 Standard
Chain Crosswise ≥350 ≥350 300
Tap Pull-Off Strength ≤7 ≤7 /
Holding Strength Of Top Stop ≥100 ≥100 70
Holding Strength Of Bottom Stop ≥70 ≥70 /
Bottom Stop Holding,Crosswise Test / 70 50
Open-End Fastener Single Stringer Slider Retention Test ≥70 ≥70 /
Holding Strength Of Separating Unit,Crosswise Test / Chain Crosswise Strength ≥110 ≥110 90
Holding Strength Of Fixed Retainer Pull-Off Test/ Box Slippage Strength ≥110 ≥110 70
Pin Slippate Strength ≥100 ≥100 /
Resistance To Pull-Off Slider Pull ≥230 ≥230 100
Resistance To Twist Of Puller And Slider ≥0.45 ≥0.45 /
Deflection Strength ≥60 ≥60 /
Slider Lock Holding, Stringer Separation ≥35 ≥35 /
Scoop Slippage, Lengthwise ≥60 ≥60 /
Individual Scoop Pull Off / ≥50 35
Reciprocation Test(Double) ≥600 ≥600 /
8P Stardard Normal Plastic Zipper QB/T2171-2014 Standard SBS Properties(Q/XXKG.002-2016) DIN3419 Standard
Chain Crosswise ≥500 ≥500 350
Tap Pull-Off Strength ≤6.5 ≤5 /
Holding Strength Of Top Stop ≥150 ≥150 120
Holding Strength Of Bottom Stop ≥100 ≥100 /
Bottom Stop Holding,Crosswise Test / ≥100 90
Open-End Fastener Single Stringer Slider Retention Test ≥90 ≥90 /
Holding Strength Of Separating Unit,Crosswise Test / Chain Crosswise Strength ≥140 ≥140 100
Holding Strength Of Fixed Retainer Pull-Off Test/ Box Slippage Strength ≥140 ≥140 100
Pin Slippate Strength ≥140 ≥140 /
Resistance To Pull-Off Slider Pull ≥280 ≥280 230
Resistance To Twist Of Puller And Slider ≥0.7 ≥0.7 /
Deflection Strength ≥80 ≥80 /
Slider Lock Holding, Stringer Separation ≥60 ≥60 /
Scoop Slippage, Lengthwise ≥90 ≥90 /
Individual Scoop Pull Off / ≥60 40
Reciprocation Test(Double) ≥600 ≥600 /
10P Stardard Normal Plastic Zipper QB/T2171-2014 Standard SBS Properties(Q/XXKG.002-2016) DIN3419 Standard
Chain Crosswise ≥550 ≥550 400
Tap Pull-Off Strength ≤9 ≤9 /
Holding Strength Of Top Stop ≥160 ≥160 80
Holding Strength Of Bottom Stop ≥120 ≥120 /
Bottom Stop Holding,Crosswise Test / ≥120 55
Open-End Fastener Single Stringer Slider Retention Test ≥100 ≥100 /
Holding Strength Of Separating Unit,Crosswise Test / Chain Crosswise Strength ≥170 ≥170 100
Holding Strength Of Fixed Retainer Pull-Off Test/ Box Slippage Strength ≥160 ≥160 80
Pin Slippate Strength ≥150 ≥150 /
Resistance To Pull-Off Slider Pull ≥300 ≥300 120-150
Resistance To Twist Of Puller And Slider ≥0.9 ≥1.1 /
Deflection Strength ≥90 ≥90 /
Slider Lock Holding, Stringer Separation ≥80 ≥80 /
Scoop Slippage, Lengthwise ≥100 ≥100 /
Individual Scoop Pull Off / ≥90 40
Reciprocation Test(Double) ≥600 ≥600 /
